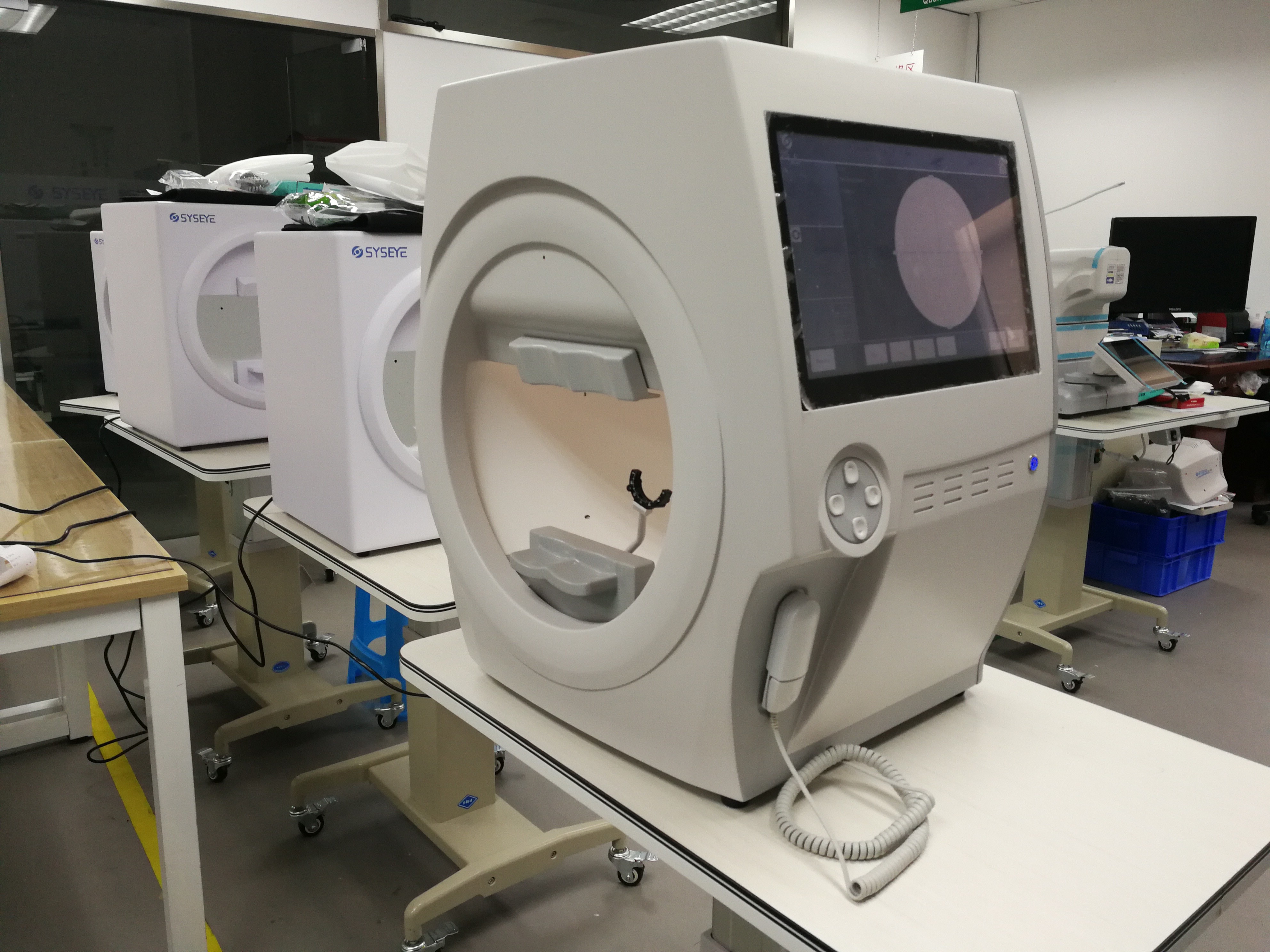

Scientific Automated Perimetry Test Machine Intelligent One Stop Design

Ask Lasest Price
Brand Name :	SYSEYE
Model Number :	BIO-1100
Certification :	TUV
Price :	$5,500.00-$6,600.00
Payment Terms :	T/T
Supply Ability :	100
Delivery Time :	5 working days

Add to Cart

Product Details
Company Profile

Scientific Automated Perimetry Test Machine Intelligent One Stop Design

automated perimetry machine Scientific and intelligent Simple one-stop modular software design

Eye diseases can cause generalized or partial loss of vision in the field of vision. The purpose of the automated perimetry is to detect these defects early and track them closely to help doctors treat them. Clinical visual field testing mainly measures the visual function of the subject's eye at a specific point in the visual range, and can be used for the diagnosis of early glaucoma, long-term follow-up of glaucoma, neurofibropathies of various parts of the visual pathway, retinal diseases and nervous system diseases, and can be used for eye diseases. It provides a strong basis for the localization and diagnosis of intracranial diseases.

Specification
Testing scope		90°
Testing distance		30CM
Background light		white31.5asb,yellow315asb
Visual target		0.08asb---10000asb(0-51DB)
Target size		GoldmannⅠ, II ,III,IV,V
Visual target stimulation time		200ms
Visual target interval time		Standard and custom
Threshold policy		Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy		C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy		Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing		Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target		Red ,blue
Dynamic policy		Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy		Static custom dynamic custom
Pupil size measurement		Auto
Fixation monitoring		Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing		Auto
Analysis software		reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System		Win7 above
Others
Size	412mm(length)* 497mm(width)* 513mm(height)
Wight	17kg
Power	100-240V HZ:50-60Hz

Technical Features:

*Strictly implement Goldman Sachs International Standards.
*Halogen projection system: The stimulating light source comes from the broadband visible spectrum, fully satisfying the stimulation of colored cone cells.
*Accurate and granular database of normal populations of all age groups, identifying more subtle early visual field defects.
*GHT glaucoma half vision analysis, making glaucoma diagnosis easier.
*GPA glaucoma progress analysis upgrade, mild glaucoma development is obvious.
*Standard SWAP blue-yellow perimetry, sensitive to early visual field defects. *Scientific and intelligent interactive detection strategy, 30° field of view detection only takes 3 minutes.
*Simple one-stop modular software design, it only takes 2 minutes to learn how to operate the equipment.

Scientific Automated Perimetry Test Machine Intelligent One Stop Design

Company Introduction

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
