Ophthalmic Ultrasonic Scanner Automatic save, automatic calculation
of average

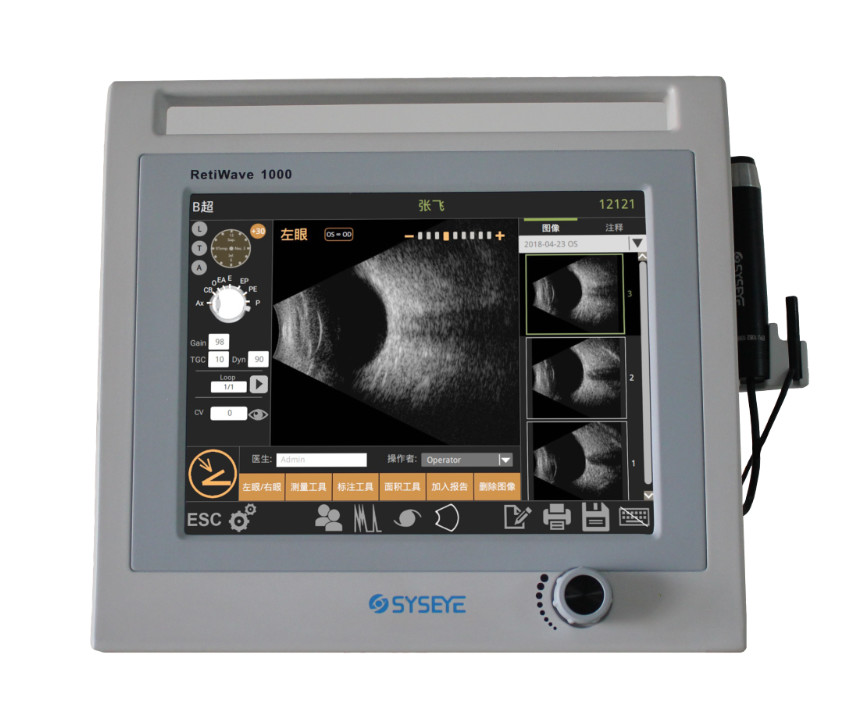

RetiWave 1000 is digital ultrasonic system for ophthalmology. With
advanced intelligent digital software the parameters of freezed and
stored images could be adjusted voluntarily
Features of scan A:
• The use of 10MHz non-focusing imported probe can most sensitively
reflect the change of sound intensity of the central tissue
(10dB-30dB), thereby greatly improving the ability to resolve
tissue properties
• Automatic save, automatic calculation of average
•Built-in multiple IOL calculation formulas
Features of scan B:
•Automatically record the first 100 images, which can be played back
continuously or one by one
•Time gain compensation adjustment function
•Convenient measurement tool
Technical Data
| A Scan biometry |
| Probe frequency | 10MHz |
| Measuring mode | contact |
| Measuring range | Over 5mm-40mm |
| Measuring error | ≤±0.05mm |
| Measuring type | Length of optic axis , automatic calculation , result analysis auto
, |
| Image freezing | auto+preservable, manual |
| Intraocular lens implantation (IOL)formula | SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS |
| Gain | 20-110dB |
| Time gain adjustment | 0-30dB |
| B Scan patterns |
| Probe frequency | 10MHz |
| Probing depth | ≥50mm |
| Axial Resolution | ≤0.2mm |
| Lateral resolution | ≤0.3mm |
| Gain adjustment | 20-110dB |
| Time gain adjustment | 0-30dB |
| Operation mode | Eyecup, gel, aqueous capsule |
| Post-processing measuring tools | Area, length, mark and annotation |
| Review | 100 images available |
| Others |
| Size | 340mm*320mm*115mm |
| weight | 10kg |
| Power supply | 100-240V 50/60Hz |
SOFTWARE OF Ultrasonic Scanner
PACKAGE
Company Introduction
Focusing on the two major public health problems of adolescent
myopia and elderly ophthalmology, our company researches new
diagnostic and treatment equipment for ophthalmology, develops
low-cost applicable technology products, realizes
industrialization, reduces the cost of social medical and health
system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development
concept.We have a strong technical force, has been awarded 11 patents, and
obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect
after-sales service system to provide medical equipment with the
highest cost performance and meticulous service.
