eye fundus camera automatic with intelligent operation simple and
fast

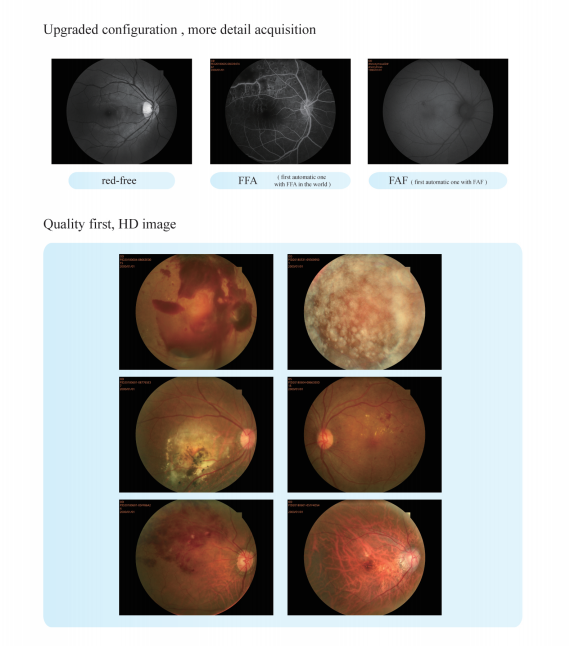

What can Automated Fundus Camera be used for:
Screening for diabetic retinopathy
Screening of hypertensive fundus lesions
Screening for macular disease
Screening for glaucoma
Primary screening, auxiliary diagnosis and post-treatment follow-up
of other fundus lesions
Professional medical
Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our
company, after years of research and development, through binocular
stereo vision and XYZ 3D image feature recognition automatic
positioning, and through the division line to achieve automatic
focus. Through CCD imaging feedback, the exposure light is measured
and the exposure intensity is determined automatically and
correctly. Focusing step is controlled according to the image
resolution, and image definition is adjusted to obtain clear and
accurate fundus image.Automated Fundus Camera RetiCam 3100 has
excellent optical imaging capability, easy to operate, less
dependence on the operator, easier to obtain images.
Main specification
| Field of view | 50° |
| Field of view tolerance | ±7% |
| Resolution | |
| Center of view | ≥60 lp/mm |
| Field of view center (r/2) | ≥40 lp/mm |
| At the edge of the field of view (r) | ≥25 lp/mm |
| Magnification | 1.3 times |
| Required pupil diameter | 4.0 mm or more (3.3 mm or more when using the small pupil shooting
function) |
| Working distance | 35 mm |
| Focus adjustment range | ±25D |
| Shooting light | Auto: with shooting mode |
| Manual: can be set manually |
| light source | |
| Illumination light | Infrared led |
| Shooting light | Xenon lights |
| reflected light | |
| Scattered light | |
| camera | Digital camera |
| Fixing light | Internal fixing light (LED) |
| External fixation light |
| Moving range | |
| Stage | 90 mm left and right, 35 mm front and rear |
| Main unit moves vertically | 30 mm |
| Chin-rest tray movement range | 60 mm |
| Rated power supply | AC 100V~240V,50/60Hz |
| size | 380 mm(L)x 550 mm(W)x 475 mm(H) |
| weight | About 26.5kg |
| When in maximum light intensity/hole bar state |
| Spectral wavelength | 305 nm~1100 nm |
Guide to electromagnetic emissions and manufacturer's declaration
The RetiCam 3100 is designed for use in the electromagnetic
environment specified below.
Customers or users of the RetiCam 3100 should ensure that the
instrument is used in the following environments.
| Emission test | Compliance | Electromagnetic environment - guide |
Radio frequency emission GB4824 |
Group 1 |
The RetiCam 3100 uses RF energy only when implementing its internal
functions. Therefore, the level of radio frequency radiation is
very low and there is less possibility of interference with nearby
electromagnetic equipment. |
Radio frequency emission GB4824 |
Class a |
The RetiCam 3100 can be used in non-domestic and home private
low-voltage power supply networks that are not directly connected
to all facilities/hospital-specific low-voltage power grids. |
Harmonic emission GB 17625.1 |
Not applicable |
Voltage fluctuation / flicker emission GB 17625.2 |
Not applicable |
