digital retinal camera fundus imaging manual/auto near-infrared
light imaging technology

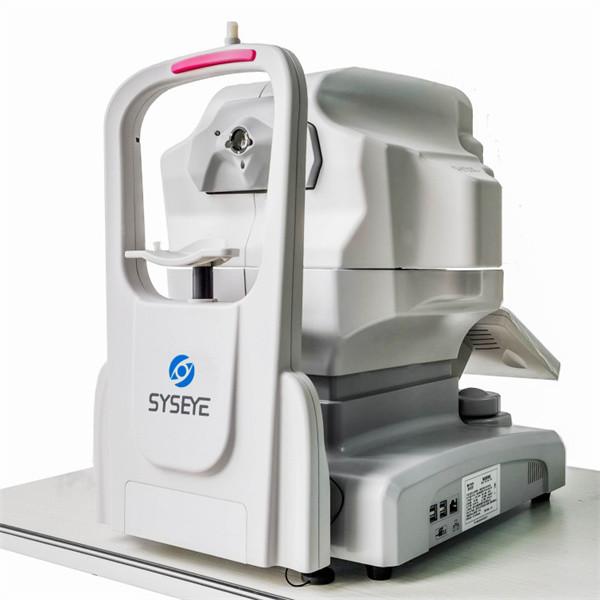

Non Mydriatic Fundus Camera is to take photos of the fundus of the eye through a fundus
camera. Can clearly see the retinal blood vessels, macular area,
optic nerve, is of great significance to the diagnosis of various
types of eye disease, check is simpler, a few minutes to complete,
no pain, there is a vision loss could be presbyopia may also be
ophthalmology, need through the slit lamp examination and fundus
examination can be confirmed.based on near-infrared light imaging
technology, can capture the required visible light images of fundus
exposed to visible light within milliseconds (no enough time for
pupils to shrink).
Specification of Non Mydriatic Fundus Camera
Acquisition modes | Non Mydriatic Fundus Camera |
Field of view | 50° |
Working distance | 13mm |
Minimum pupil size | ≥2.8mm |
Focus modes | Auto/manual |
Exposure modes | Auto /manual |
Operation | Auto /manual |
Photography | SLR camera |
Camera | CCD |
Diopter compensation | ±25D |
Fixation | External fixation / internal fixation |
Autofocus assist light | Infrared LED |
DICOM 3.0 | Yes |
Customization AI port | Yes |
1.During the transportation, proper measures shall be taken to
protect this equipment from moisture, upside down and violent
vibration.
2.This equipment shall be stored at the well-ventilated room with
the relative moisture no higher than 93%, ambient temperature being
-40℃ - +55℃and free of corrosive gases.
3.Please require workers to lift up the equipment and then move it
in case of short-distance movement. In case of long-distance
movement, please repack it in the original box and then move it.
