non contact tonometer with color touch monitor for corneal
thickness
non contact tonometer St-1000p is a non-contact tonometer with
automatic alignment. The test of intraocular pressure is an
important index for clinical diagnosis of ophthalmology. Our
st-1000p non-contact tonometer adopts non-contact measurement with
no risk of infection, simple operation and easy acceptance by
patients.
Non-contact tonometer (NCT) has been gradually recognized and
accepted by more and more patients because of its advantages such
as simple operation, rapid measurement, automatic printing of test
results, no direct contact with the eyeball, no superficial
anesthesia, and no pain for patients.

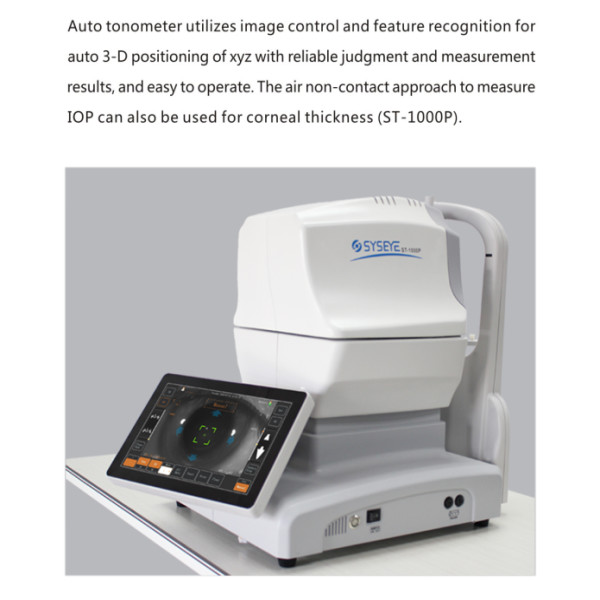

Auto tonometer utilizes image control and feature recognition for
auto 3-D positioning of xyz with reliable judgment and measurement
results, and easy to operate. The air non-contact approach to
measure IOP can also be used for corneal thickness (ST-1000P).
Non Contact Tonometer specification
| Intraocular pressure (IOP) measuring range | 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg) |
| Measuring system | dual sensor system of light and pressure |
| Working distance | ≥11mm |
| R/L | automatic detection and display |
| Measuring result | 10 times per eye; 3 times result printing per eye |
| Recording | build-in printer |
| Measuring mode | auto/manual |
| Movement range | ≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement | ≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Display mode | 10.1-inch HDMI color LED touch monitor |
| Output port | USB2.0 |
Product Description Of Non Contact Tonometer
Screen color and touch,
Rotating screen like Topcon.
Motorized chinrest
Auto tracking eye , you can select auto or manual .
if select auto , will automatic adjust the chinrest distance ,
height, and shoot air to measure . two second finish .
Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg
~60mmHg ( precision of 1mmHg)
Measuring system: dual sensor system of light and pressure
Working distance:≥11mm
R/L: automatic detection and display
Measuring result: 10 times per eye; 3 times result printing per eye
Recording: build-in printer
Measuring mode: auto/manual
Focus: when luminous spot is in the focus frame, 2 modes can be
chosen.
Auto mode: auto intraocular pressure measurement
Manual mode: when it's good focus, the frame will turn yellow into
green, and click to start the measurement
Error indication: if the measurement signal is weak, the IOP will
be enclosed by ( ), or display “ERR ”
Safety limit button: install measurement for minimum distance
between head and patient
Safety functions: the distance between air nozzle and cornea is
controlled in preset range(such as 11mm); it will stop going
forward when the cornea is too closed to air head.
Movement range:≥30mm(front to back)/ 90mm(left to right)/
30mm(vertical)
Jaw layer vertical movement: 0~65mm with under jaw layer
Display mode: 10.1-inch HDMI color LED touch monitor
Output port: USB2.0
Working platform: electric elevating platform
