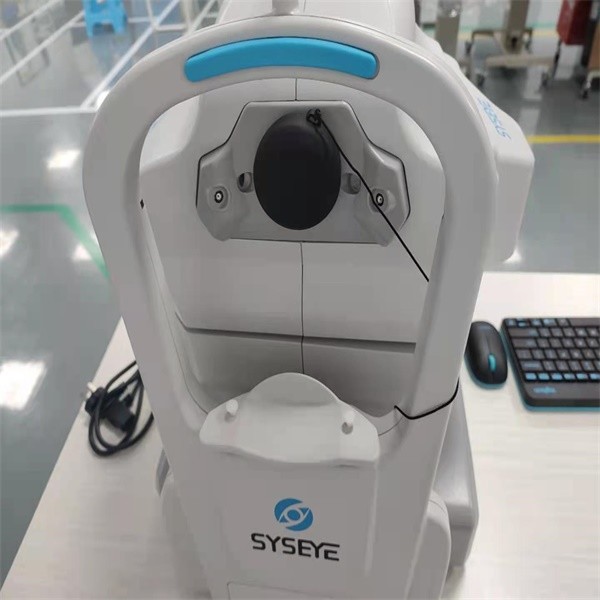

Automatic fundus camera dual camera system intellegent operation
Automated Fundus Camera Five automatic functions
1. Three-dimensional automatic tracking.
2. Auto focus.
3. Automatic switch from the front part to the fundus of eyes.

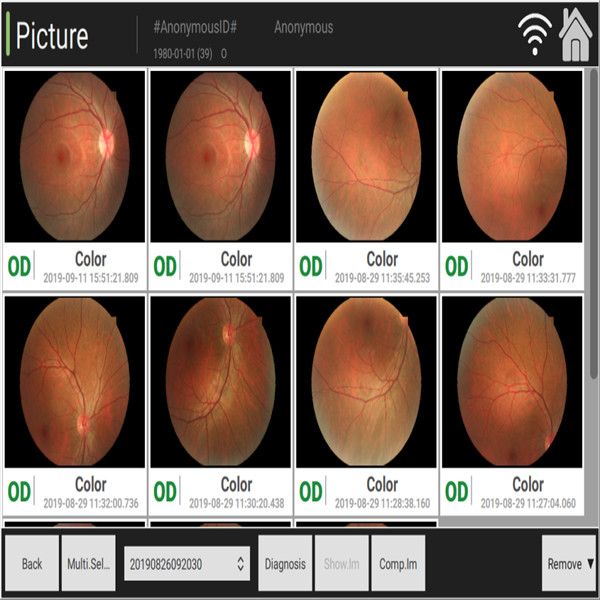

4. Automatic shooting.
5. Automatic printing and output - TheRETICAM 3100 device can
always achieve seamless photography.
Automated Fundus Camera RETICAM 3100 Fundus autofluorescence (FAF), as a new retinal
imaging technology, has been widely used in clinical medicine since
its advent. It has been demonstrated that FAF can be used to
diagnose and monitor many fundus diseases, including posterior
uveitis, quickly and noninvasively.
As a new application of non-invasive, non-contact, non-invasive,
rapid and repeatable observation and monitoring of many fundus
diseases including posterior uveitis, FAF has begun to play its
unique role, and has attracted more and more attention of
ophthalmologists and medical technicians.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography
/Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
For patients who have an allergic reaction to strong light or who
cannot receive light stimulation, please consult the physicians
before imaging.
| Automated Fundus Camera in the world |
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | | 80 degree | 135degree |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1
outside fixation |
| Technology of focus | | | Dual camrea technology |
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture
consecutive with almost same performace |
