non mydriatic fundus camera automatic Small pupil imaging
capability

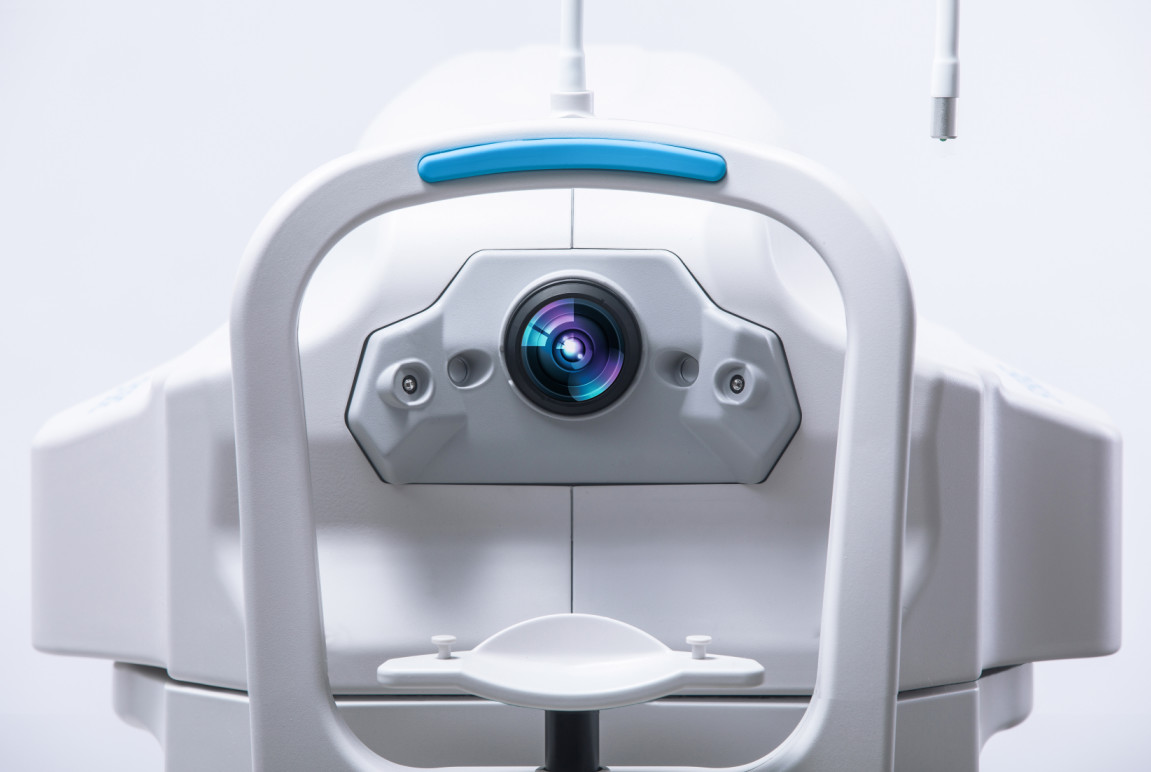

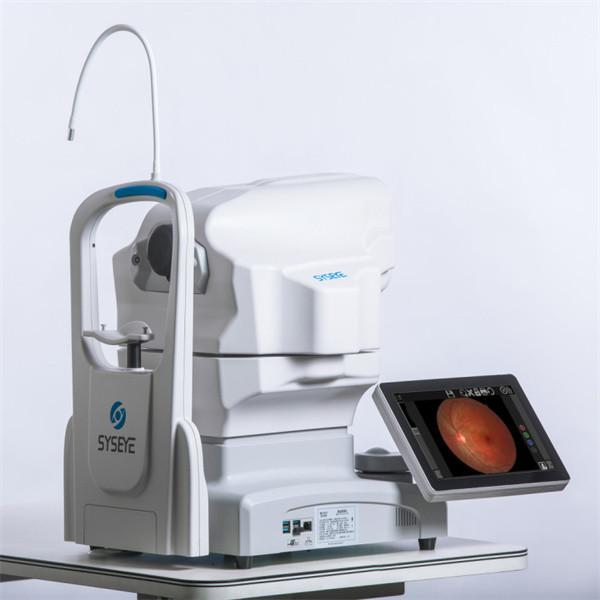

non-mydriatic fundus camera RetiCam 3100 can be used to capture the
anterior and posterior eye images. It has a field of view of 50
degrees for fundus imaging.This product is intended to be used in a
hospital/clinic or similar environment.
Automatic Fundus Camera Reticam 3100 is a highly recognized and
popular automatic fundus imaging system around the world. Through
dual camera imaging, image control and feature recognition, eye XYZ
3D automatic positioning is realized. Through CCD imaging feedback,
the exposure is measured, and the exposure intensity is
automatically and accurately determined, without the need for a
doctor's complex operation. By controlling the focusing step length
according to the image resolution, the image definition can be
automatically adjusted to obtain a clear and accurate fundus image
and help doctors make accurate judgments for patients.
In default setting, this product works for a pupil with a standard
diameter of 4.0 mm or larger.
In a small pupil mode, it can take fundus images for pupils with a
diameter of 3.3 mm or larger.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography
/Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
Company Introduction
Focusing on the two major public health problems of adolescent
myopia and elderly ophthalmology, our company researches new
diagnostic and treatment equipment for ophthalmology, develops
low-cost applicable technology products, realizes
industrialization, reduces the cost of social medical and health
system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development
concept.We have a strong technical force, has been awarded 11 patents, and
obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect
after-sales service system to provide medical equipment with the
highest cost performance and meticulous service.
