Achieve peripheral retinal fundus image. besides external fixation
and 9 internal fixation targets, there are countless fixation
targets at range of circle made up of 9 internal fixation targets.
single picture up to 50 degree range.few pictures can complete
examination and reduce misdiagnosis.

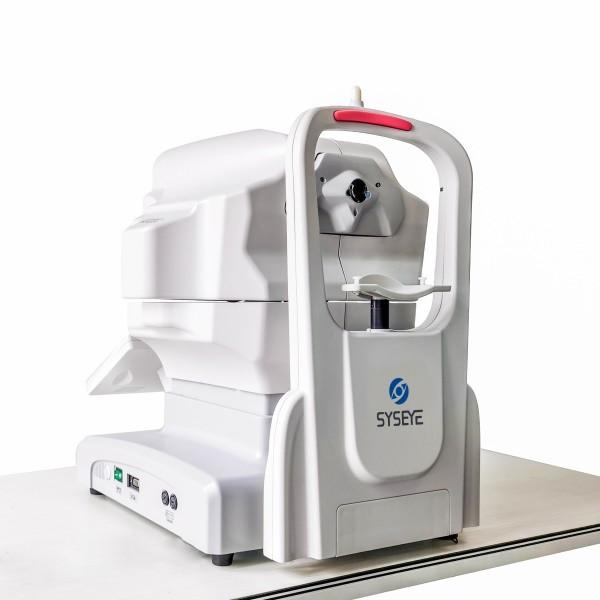

Acquisition modes | Non Mydriatic Fundus Camera |
Field of view | 50° |
Working distance | 17mm |
Minimum pupil size | ≥2.8mm |
Focus modes | Auto/manual |
Exposure modes | Auto /manual |
Operation | Auto /manual |
Photography | SLR camera |
Camera | CCD |
Diopter compensation | ±25D |
Fixation | External fixation / internal fixation |
Autofocus assist light | Infrared LED |
DICOM 3.0 | Yes |
Customization AI port | Yes |
Working principles of Non Mydriatic Fundus Camera
RetiCam 3100, based on near-infrared light imaging technology, can
capture the required visible light images of fundus exposed to
visible light within milliseconds (no enough time for pupils to
shrink).
What are features of our Non Mydriatic Fundus Camera ?
1. Onc-key touch, picture got automatically
2. Double cameras system, get focus position accurately and quickly
3. Non-mydriatic,automatic focus,automatic exposure
4. Smart operation:automatic,simple,fast
5. 10.1 inch TFT touch-color screen with concise interface
design,each indication presented clearly
First step:input patient information
Second step:adjust eyeline locate at range of pupil area,center
position is not necessary
Final step:click "take picture",machine will move chin rest and
find center of pupil automatically,focus automatically,exposure
automatically,picture taken automatically within 10 seconds.
Company Introduction
Focusing on the two major public health problems of adolescent
myopia and elderly ophthalmology, our company researches new
diagnostic and treatment equipment for ophthalmology, develops
low-cost applicable technology products, realizes
industrialization, reduces the cost of social medical and health
system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development
concept.We have a strong technical force, has been awarded 11 patents, and
obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect
after-sales service system to provide medical equipment with the
highest cost performance and meticulous service.
