Fast and accurate autofocus Non-Contact Automated Fundus Camera
What can Automated Fundus Camera be used for:
Screening for diabetic retinopathy
Screening of hypertensive fundus lesions
Screening for macular disease
Screening for glaucoma
Primary screening, auxiliary diagnosis and post-treatment follow-up
of other fundus lesions
Professional medical
The fundus of the eye mainly includes: retina, optic nerve, blood
vessels on retina, macula and choroid after retina, etc. The
retinal vessels are the only ones directly visible to the naked
eye, so fundus examination has become an important basis for
monitoring a variety of systemic diseases. And Automated Fundus Camera is to help us see the fundus lesions clearly and objectively.

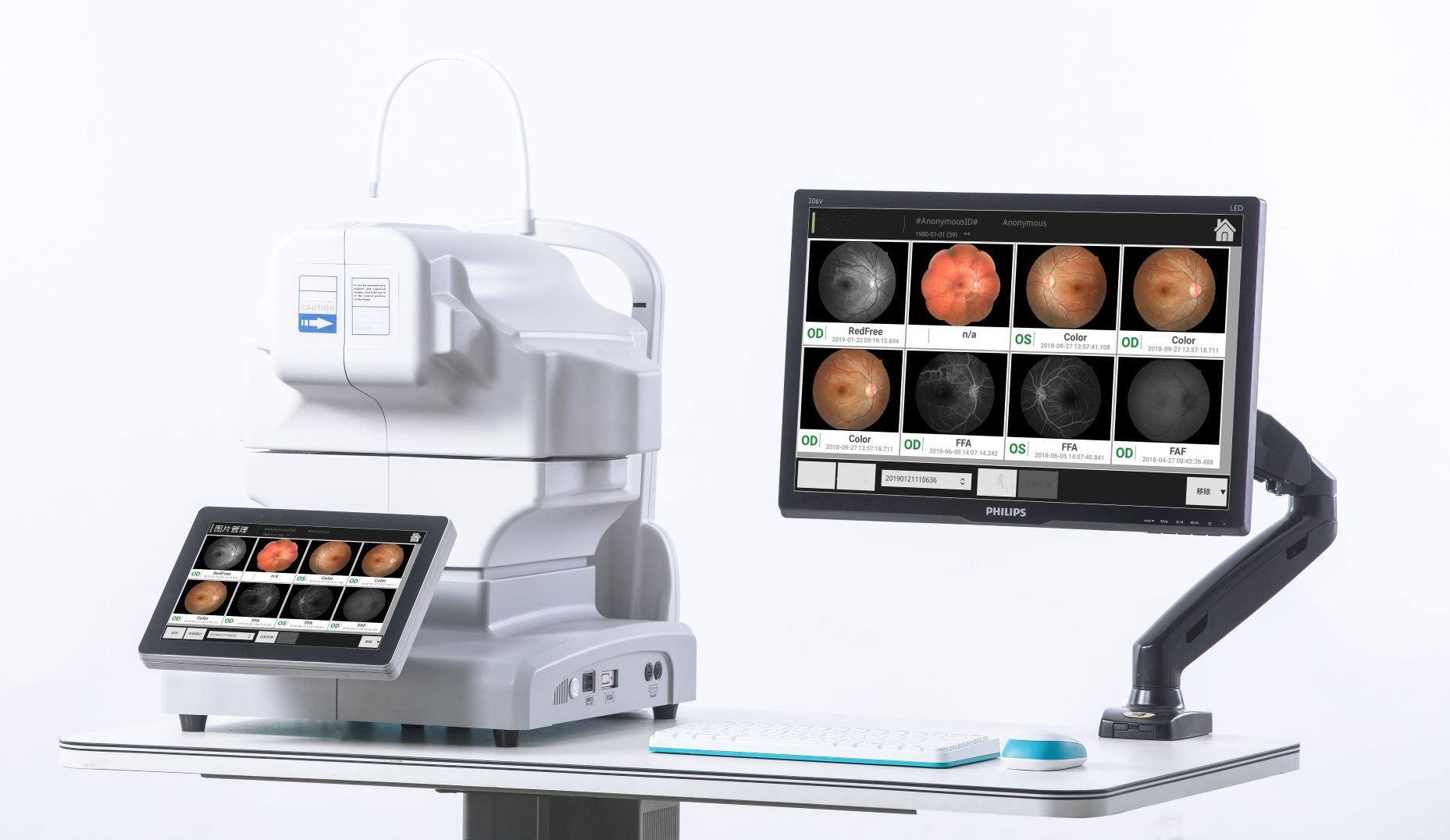

Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our
company, after years of research and development, through binocular
stereo vision and XYZ 3D image feature recognition automatic
positioning, and through the division line to achieve automatic
focus. Through CCD imaging feedback, the exposure light is measured
and the exposure intensity is determined automatically and
correctly. Focusing step is controlled according to the image
resolution, and image definition is adjusted to obtain clear and
accurate fundus image.Automated Fundus Camera RetiCam 3100 has
excellent optical imaging capability, easy to operate, less
dependence on the operator, easier to obtain images.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography
/Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
For patients who have an allergic reaction to strong light or who
cannot receive light stimulation, please consult the physicians
before imaging.
| Automated Fundus Camera in the world |
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | | 80 degree | 135degree |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1
outside fixation |
| Technology of focus | | | Dual camrea technology |
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture
consecutive with almost same performace |
Company Introduction
Focusing on the two major public health problems of adolescent
myopia and elderly ophthalmology, our company researches new
diagnostic and treatment equipment for ophthalmology, develops
low-cost applicable technology products, realizes
industrialization, reduces the cost of social medical and health
system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development
concept.We have a strong technical force, has been awarded 11 patents, and
obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect
after-sales service system to provide medical equipment with the
highest cost performance and meticulous service.
