perimeter ophthalmic instrument scientific means in accordance with
international Goldman standard
The peripherals of Bio-1000 plus automatic computer absorb the
advantages of the international advanced visual field measurement
equipment. It includes highly integrated computer, optical,
mechanical and electronic systems. Combined with advantageous
configurations and comprehensive software testing categories, it
provides internationalization, strictly in accordance with
international Goldman Sachs standards, and provides scientific
means for glaucoma, fundus diseases, visual pathway damage and
nervous system diseases.
Features of Visual Field Analyzer
1. Comprehensive real-time monitoring, HeiJji krakau physiological
blind spot monitoring, line of sight tracking/head position
tracking, automatic measurement of pupil diameter, reducing the
impact of pupil effect on visual field detection
2. Abundant threshold detection and super-threshold detection
modes, which can detect early visual field defects
3. Scientific and intelligent interactive inspection strategy
improves your work efficiency. 3 minutes to inspect a 30° field of
view

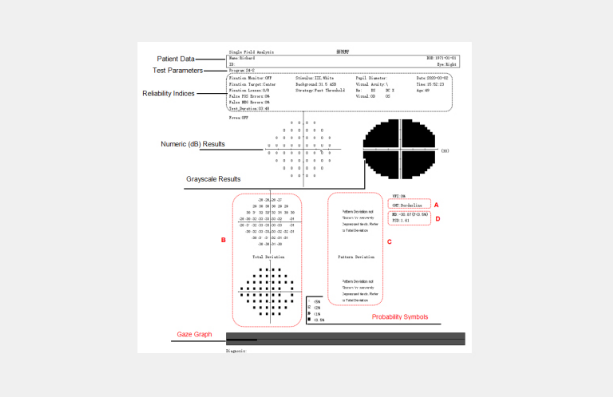

4. 6 types of analysis: reliability analysis, single report
analysis, multi-report analysis, glaucoma semi-field analysis,
glaucoma progress analysis, VFI field of view index analysis;
5. Half-time analysis designed for glaucoma to make glaucoma
diagnosis easier
6. Analysis of glaucoma progress, very subtle progress is more
obvious, and continues to prompt new progress
Specifications:
Basic specification | small size Visual Field Analyzer |
Inspection range | 90° |
Inspection distance | 30cm |
Background light brightness | White 31.5asb |
Visual target brightness | 1asb--- -10000asb |
Visual target size | GoldmannIII |
Visual target interval time | 200ms |
Visual target interval time | Standard or adjustment according to patient reflection |
Threshold test model | Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
Upper Threshold test model | 30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
Special detection strategy | Esterman monocular, Esterman binocular . user- customized test,
150P driver monocular fast detection, 150P driver monocular
standard detection , upper 36 detection, blind spot
detection,150horizontal straightness detection |
Pupil size test | Automatic |
Fixation monitoring | Blind spot monitoring , eye position eye position deviation alarm,
eye deviation curve |
Environment light detection | Automatic |
Analysis software | Reliability analysis , single vision report, triple vision report,
GPA half vision analysis, GPA glaucoma developing analysis , VFI
vision index analysis |
Operation system | Win7 above
|
| Feature | Visual Field Analyzer 1. Comprehensive real-time monitoring, heiji-krakau physiological
blind spot monitoring. Gaze tracking/head position tracking,
automatic measurement of pupil diameter, reduce the impact of pupil
effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and
rapid examination strategy. 3. Under international Goldman standard, providing a variety of
calssic test procedures and report analysis.
|
Company Introduction
Focusing on the two major public health problems of adolescent
myopia and elderly ophthalmology, our company researches new
diagnostic and treatment equipment for ophthalmology, develops
low-cost applicable technology products, realizes
industrialization, reduces the cost of social medical and health
system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development
concept.We have a strong technical force, has been awarded 11 patents, and
obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect
after-sales service system to provide medical equipment with the
highest cost performance and meticulous service.
