    Compact Eye Axial Length View Measuring System With High Accuracy

    Ask Lasest Price
    Brand Name : SYSEYE
    Model Number : AL-VIEW
    Certification : CE,FDA,13485
    Price : $9000~$12000
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

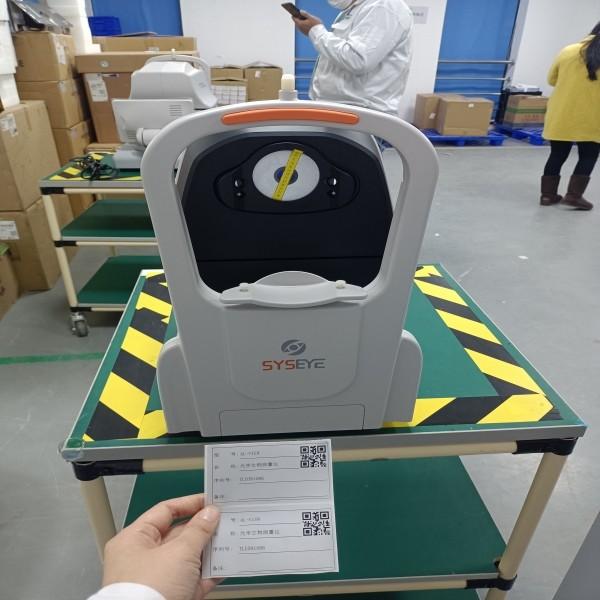

    Compact Eye Axial Length View Measuring System With High Accuracy

    Compact Eye Axial Length View Measuring System with High Accuracy

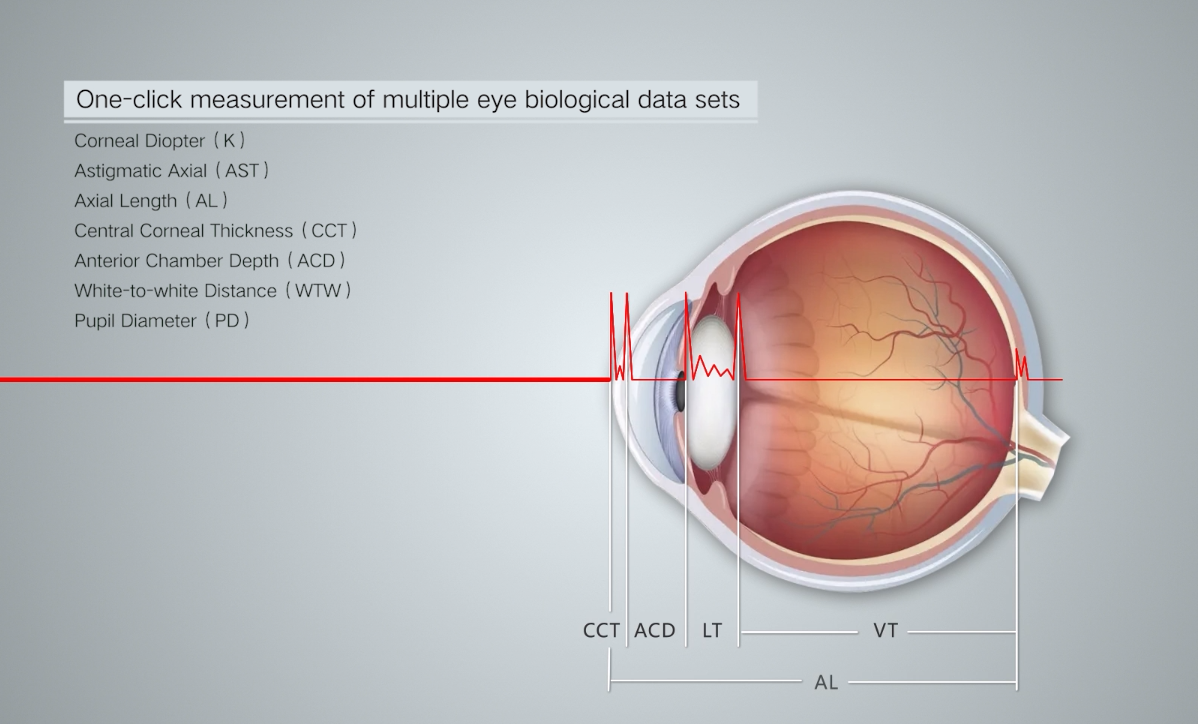

    ophthalmic optical biometer that can measure and calculate the visual axis and IOL with high precision. It can measure corneal diopter, astigmatism axis, axial length, central corneal thickness, and anterior chamber depth , white-to-white distance, pupil diameter and other sets of biological data with one click., binocular measurement can be completed within 20 seconds, providing patients with a fast, accurate and comfortable measurement experience.


    Product Features:


    1.automatic operation without handle, one finger touch get all results automatically
    2.compact design with computer build in
    3.micron level ensure accurate eye axial length measurement
    4.biological progress analysis available
    5.built-in thermal printer

    SPECIFICATION


    Measuring RangeAxial length14-38mm
    Corneal curvature5-11mm
    Anterior chamber depth0.7-8mm
    Lens thickness1-10mm(lens)
    0.13-2.5mm(intraocular lens)
    Center cornea thickness0.2-1.2mm
    Cornea white to white7-16mm
    Pupil diameter2-13mm
    Curvature range180 degree
    AccuracyAxial length0.01mm
    Corneal curvature0.01mm
    Anterior chamber depth0.01mm
    Lens thickness0.01mm
    Center cornea thickness0.01mm
    White to white0.1mm
    Pupil diameter0.01mm
    Axis of sight eccentricity0.01mm
    Axis angle1 degree
    RepeatabilityAxial length0.02mm
    Corneal curvature(1σ)+/-30μm
    Anterior chamber depth0.02mm
    Lens thickness0.02mm
    Center cornea thickness0.02mm
    White to white(1σ)+/-0.3μm
    Curvature difference±9 degree
    Calculation formula of intraocular lensinterfacevoltage/frequency
    Bink Horst-Ⅱ,Holladay,Hoffer-Q,Haigis,SRK-T,SRK ⅡUSB 2.0 window 10AC110-240V/50HZ
